ESC Overview:

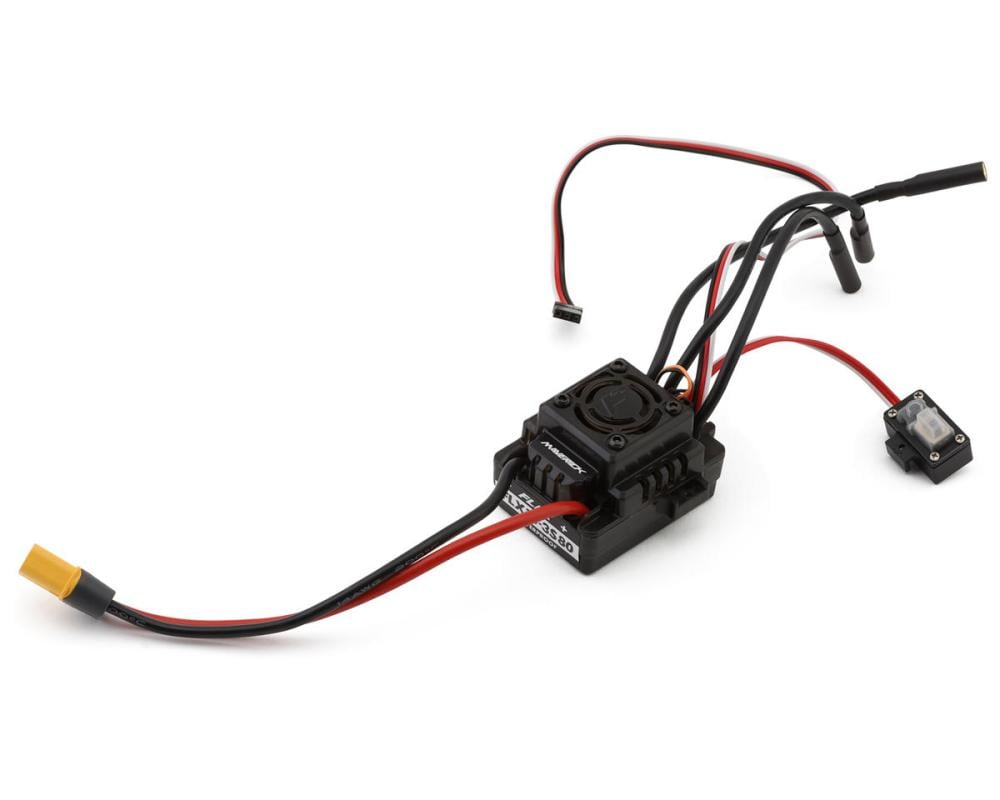

Maverick FLX10-3S80 Flux 1/10 Brushless ESC with XT60 Connector. This is a replacement ESC intended for use in the Maverick 1/10 Quantum Flux 80A MT and XT vehicles, and the Maverick Quantum2 Flux Brushless 1/10 4WD platforms. This ESC is the perfect match for Maverick's MM-3660-BL 3300KV 1/10th scale brushless motor (MVK150168) available separately. The FLX10-3S80 is able to pump 80 amps of power to the motor and is equipped with complete water-resistant protection. A large cooling fan sits on top of the case inside of a protective cover to keep things from overheating during intense operation. This ESC is the perfect blend of performance, durability, and ease of use.
Features:
- Capable of handling 2S or 3S LiPo batteries
 - Built-in switch BEC with a continuous current of 2A at 6V.
 - Designed to handle up to 80 amps of continuous current
 - Specifically designed for use with brushless motors, offering efficient power delivery and improved performance
 - Programmable settings that can be adjusted to optimize performance
 - Equipped with a heatsink and a cooling fan to prevent overheating during intense operation
 - Designed to be water resistant and dustproof, enhancing its reliability in various environments

Specifications:
- Suggested Application: 1/10
 - Motor Type: Brushless-Sensorless
 - Input Voltage: 2-3S LiPo
 - Continuous Current: 80A
 - Burst Current: 540A
 - Dimensions: 1.99x2.21x1.39in (50.5x56.2x35.4mm)
 - Weight: -
 - Motor Limits:
 - 2S LiPo: <600kV
 - 3S LiPo: <400kV
 - BEC Voltage: 6V-7.4V
 - BEC Continuous Current: 2A
 - BEC Peak Current: -
 - Motor Connector: 4.0mm Bullet
 - Battery Connector: T-Plug
 - Motor Wire: 14AWG
 - Battery Wire: 14AWG
 - Throttle Wire: -
 - Programmable: Yes

Includes:
- (1) Maverick FLX10-3S80 Flux 1/10 Brushless ESC with XT60 Connector
 - Product Manual
