Speed control for Al-Barashid motors
Operates on 2C LiPo batteries
Or a NEMA 6 or 7 cell NiMh battery
Features of the MEGA Electronic Control Unit (ESC)
- Equipped with reliable IC3 connector
- Supports operation of 6 or 7-cell LiPo 2S or Nickel Metal Hybrid (NiMh) batteries
- It has overvoltage protection to ensure safe power management under harsh operating conditions.
- Stylish anodized red heatsink for increased heat dissipation
- Strong and durable cables for the motor and battery to ensure safe and reliable power transmission.
- Water-resistant power button
- Durable red nylon outer shell with special chassis mounting clips for extra security
- The engraved "ARRMA" logo adds a professional look and confirms the quality of the workmanship.
Supported battery specifications:
- 7.2V (6 cells) NiMh
- 8.4V (7 cells) NiMh
- 7.4V (2S) LiPo

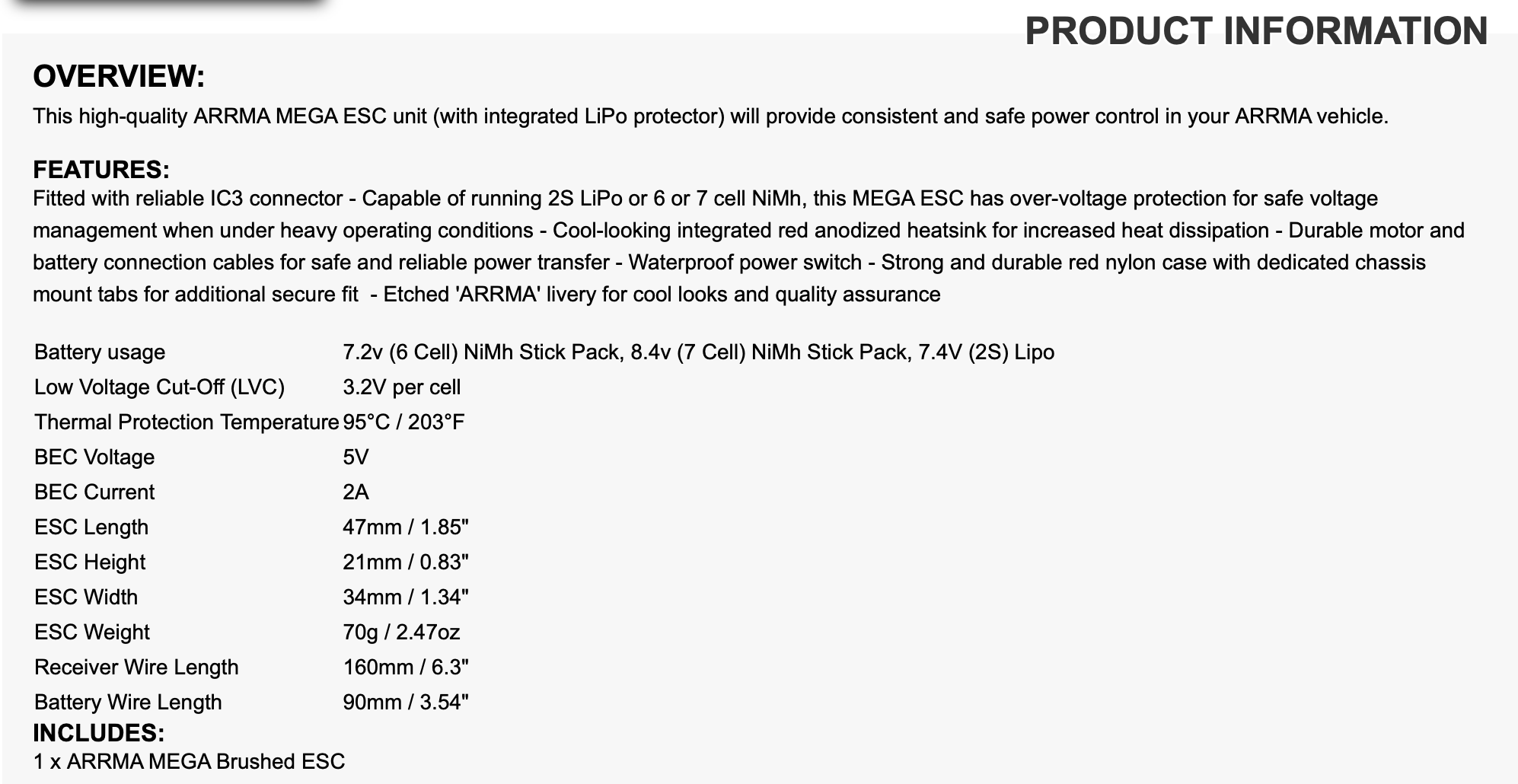

Technical specifications:
- Low Voltage Cut-Off (LVC): 3.2V per cell
- Thermal protection temperature: 95°C / 203°F
- BEC circuit voltage: 5V
- BEC current: 2 A
Dimensions and weight:
- Length: 47mm / 1.85in
- Height: 21mm / 0.83in
- Width: 34mm / 1.34in
- Weight: 70g / 2.47oz
Wire lengths:
- Receiver wire: 160mm / 6.3in
- Battery wire: 90mm / 3.54in
It can be used on the following cars:
